Drawing functions for primitive 3D Shapes. More...

Functions
void	Init (const Vector2 &window_size, float fov, float far_plane)
	Initializes internals for 3D rendering. Probably will be rethought later. More...

void	ChangeFOV (float fov)
	Helper function to conveniently change the Field-Of-View. More...

void	ChangeFarPlane (float far_plane)
	Helper function to change the far-plane, which is the cutoff distance for rendering. More...

void	Begin ()
	Open a 3-D rendering context with the underlying graphics system (In this case& by default OpenGL). More...

void	End ()
	Closes a 3-D rendering context with the underlying graphics system (In this case& by default OpenGL). More...

void	SetMatrix (const std::vector< GLfloat > &matrix, const Vector2 &window_size)

void	DrawLine (const Color4 &color, const Vector3 &A, const Vector3 &B, float thickness=1.f)
	Draws a line in 3D space. More...

void	DrawCubicBezierCurve (const Color4 &color, const Vector3 &controlA, const Vector3 &pointA, const Vector3 &pointB, const Vector3 &controlB, int subdivisions=10, float thickness=1)
	Draws a smooth, curved line segment between two control points, with the curve controlled by the two inner points. More...

void	WireframeIcosahedron (const Color4 &color, const Vector3 &position, float radius, float thickness=1.f)
	Draws the outline of an Icosahedron in 3D space. More...

void	FillIcosahedron (const Color4 &color, const Vector3 &position, float radius)
	Draws a solid Icosahedron in 3D space. More...

void	WireframeSphere (const Color4 &color, const Vector3 &position, float radius, float thickness=1.f, uint sectors=10, uint stacks=10)
	Draws the outline of a Sphere in 3D space. More...

void	WireframeSphere (const Color4 &color, const Sphere &sphere, float thickness=1.f, uint sectors=10, uint stacks=10)
	Draws the outline of a Sphere in 3D space. More...

void	WireframeIcosphere (const Color4 &color, const Vector3 &position, float radius, float thickness=1.f, unsigned int subdivisions=10)
	Draws the outline of an Icosphere in 3D space. More...

void	WireframeIcosphere (const Color4 &color, const Sphere &sphere, float thickness=1.f, unsigned int subdivisions=10)
	Draws the outline of an Icosphere in 3D space. More...

void	WireframeCubesphere (const Color4 &color, const Vector3 &position, float radius, float thickness=1.f, unsigned int subdivisions=10)
	Draws the outline of a Cubesphere in 3D space. More...

void	WireframeCubesphere (const Color4 &color, const Sphere &sphere, float thickness=1.f, unsigned int subdivisions=10)
	Draws the outline of a Cubesphere in 3D space. More...

void	FillSphere (const Color4 &color, const Vector3 &position, float radius, uint sectors=10, uint stacks=10)
	Draws a solid Sphere in 3D space. More...

void	FillSphere (const Color4 &color, const Sphere &sphere, uint sectors=10, uint stacks=10)
	Draws a solid Sphere in 3D space. More...

void	FillIcosphere (const Color4 &color, const Vector3 &position, float radius, unsigned int subdivisions=10)
	Draws a solid Icosphere in 3D space. More...

void	FillIcosphere (const Color4 &color, const Sphere &sphere, unsigned int subdivisions=10)
	Draws a solid Icosphere in 3D space. More...

void	FillCubesphere (const Color4 &color, const Vector3 &position, float radius, unsigned int subdivisions=10)
	Draws a solid Cubesphere in 3D space. More...

void	FillCubesphere (const Color4 &color, const Sphere &sphere, unsigned int subdivisions=10)
	Draws a solid Cubesphere in 3D space. More...

void	WireframeAABB (const Color4 &color, const Vector3 &pos, const Vector3 &radii, float thickness=1.f)
	Draws an outline of an axis-aligned bounding box in 3D space. More...

void	WireframeAABB (const Color4 &color, const AABB &aabb, float thickness=1.f)
	Draws an outline of an axis-aligned bounding box in 3D space. More...

void	FillAABB (const Color4 &color, const Vector3 &pos, const Vector3 &radii)
	Draws a solid axis-aligned bounding box in 3D space. More...

void	FillAABB (const Color4 &color, const AABB &aabb)
	Draws a solid axis-aligned bounding box in 3D space. More...

void	WireframeOBB (const Color4 &color, const Vector3 &position, const Vector3 &radii, const EulerAngle &orientation, float thickness=1.f)
	Draws an outline of an oriented bounding box in 3D space. More...

void	WireframeOBB (const Color4 &color, const OBB &obb, float thickness=1.f)
	Draws an outline of an oriented bounding box in 3D space. More...

void	FillOBB (const Color4 &color, const Vector3 &position, const Vector3 &radii, const EulerAngle &orientation)
	Draws an outline of an oriented bounding box in 3D space. More...

void	FillOBB (const Color4 &color, const OBB &obb)
	Draws an outline of an oriented bounding box in 3D space. More...

void	WireframeCylinder ()

void	FillCylinder ()

void	WireframePrism ()

void	FillPrism ()

void	WireframePipe ()

void	FillPipe ()

void	WireframeCone ()

void	FillCone ()

void	WireframeTorus ()

void	FillTorus ()

void	FillCapsule (const Color3 &color, const Capsule &capsule)

void	WireframeCapsule (const Color3 &color, const Capsule &cap, float thickness=1.f)

void	FillTriangleMesh (const Color3 &color, const TriangleMesh &mesh)

void	WireframeTriangleMesh (const Color3 &color, const TriangleMesh &mesh, float thickness=1.f)

void	DrawString (const Color4 &color, const std::string &text, const Vector3 &pos, float scale, u32 size, const Font &font, const EulerAngle &angle={0, 0, 0}, bool draw_back_face=false)
	Draws a string of text in 3D space, with an arbitrary rotation. More...

void	DrawBillboardString ()
	Draws a string of text in 3D space that is always facing the exact direction of the camera projection. More...

void	DrawBillboardSprite ()
	Draws a texture sprite in 3D space that is always facing the exact direction of the camera projection. More...

void	DrawSprite ()

void	DrawMatrixGizmo (const Matrix3x3 &, const Vector3 &)

void	DrawMatrixGizmo (const Matrix4x4 &)

void	DrawAxisAngleGizmo (const AxisAngle &, const Vector3 &)

void	DrawQuaternionGizmo (const Quaternion &, const Vector3 &)

Detailed Description

Drawing functions for primitive 3D Shapes.

Function Documentation

◆ Begin()

void JGL::J3D::Begin ( )

Open a 3-D rendering context with the underlying graphics system (In this case& by default OpenGL).

Note: This call may not strictly be necessary on some setups, but is provided to keep the API constant. It is recommended to always open a JGL 3D context to render your content, then close when completed. This keeps our code from, say, clobbering the OpenGL rendering context driving 2D content in between our calls.

Here is the call graph for this function:

◆ ChangeFarPlane()

void JGL::J3D::ChangeFarPlane ( float far_plane )

Helper function to change the far-plane, which is the cutoff distance for rendering.

◆ ChangeFOV()

void JGL::J3D::ChangeFOV ( float fov )

Helper function to conveniently change the Field-Of-View.

◆ DrawAxisAngleGizmo()

void JGL::J3D::DrawAxisAngleGizmo	(	const AxisAngle &	,
		const Vector3 &
	)

◆ DrawBillboardSprite()

void JGL::J3D::DrawBillboardSprite ( )

Draws a texture sprite in 3D space that is always facing the exact direction of the camera projection.

◆ DrawBillboardString()

void JGL::J3D::DrawBillboardString ( )

Draws a string of text in 3D space that is always facing the exact direction of the camera projection.

◆ DrawCubicBezierCurve()

void JGL::J3D::DrawCubicBezierCurve	(	const Color4 &	color,
		const Vector3 &	controlA,
		const Vector3 &	pointA,
		const Vector3 &	pointB,
		const Vector3 &	controlB,
		int	subdivisions = `10`,
		float	thickness = `1`
	)

Draws a smooth, curved line segment between two control points, with the curve controlled by the two inner points.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

controlA	The first control point, which can be considered the start of the line.
pointA	The first inner point, which controls the contour of the curve.
pointB	The second inner point, which controls the contour of the curve.
controlB	The second control point, which can be considered the end of the line.
subdivisions	The accuracy of the approximation of the curve, measured in iteration steps taken.
thickness	The line-width to draw the curve with.

See also: J3ML::Algorithm::Bezier

Here is the call graph for this function:

◆ DrawLine()

void JGL::J3D::DrawLine	(	const Color4 &	color,
		const Vector3 &	A,
		const Vector3 &	B,
		float	thickness = `1.f`
	)

Draws a line in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

A	The start-point of the line segment.
B	The end-point of the line segment.
thickness	The line-width to draw the line segment with.

◆ DrawMatrixGizmo() [1/2]

void JGL::J3D::DrawMatrixGizmo	(	const Matrix3x3 &	,
		const Vector3 &
	)

◆ DrawMatrixGizmo() [2/2]

void JGL::J3D::DrawMatrixGizmo ( const Matrix4x4 & )

◆ DrawQuaternionGizmo()

void JGL::J3D::DrawQuaternionGizmo	(	const Quaternion &	,
		const Vector3 &
	)

◆ DrawSprite()

void JGL::J3D::DrawSprite ( )

◆ DrawString()

void JGL::J3D::DrawString	(	const Color4 &	color,
		const std::string &	text,
		const Vector3 &	pos,
		float	scale,
		u32	size,
		const Font &	font,
		const EulerAngle &	angle = `{0, 0, 0}`,
		bool	draw_back_face = `false`
	)

Draws a string of text in 3D space, with an arbitrary rotation.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

text	The content to display on the screen.
pos	The position in 3D space to display the text.
scale	The scaling factor to render the text with, 1 being default. TODO: Vector2 scaling?
size	The pixel size to rasterize the font with.
font	The font object to use when drawing.
angle	The orientation in 3D space.
draw_back_face

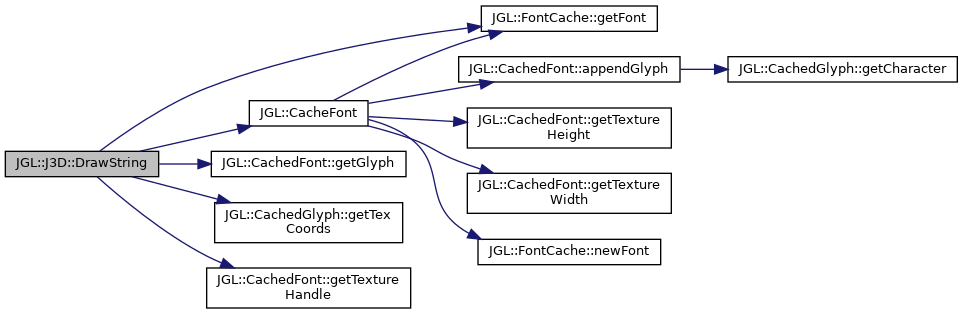

Here is the call graph for this function:

◆ End()

void JGL::J3D::End ( )

Closes a 3-D rendering context with the underlying graphics system (In this case& by default OpenGL).

See also: Begin().

◆ FillAABB() [1/2]

void JGL::J3D::FillAABB	(	const Color4 &	color,
		const AABB &	aabb
	)

Draws a solid axis-aligned bounding box in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

aabb	The AABB object to visualize.

Here is the call graph for this function:

◆ FillAABB() [2/2]

void JGL::J3D::FillAABB	(	const Color4 &	color,
		const Vector3 &	pos,
		const Vector3 &	radii
	)

Draws a solid axis-aligned bounding box in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

pos	The point in 3D space that is the center of the AABB.
radii	The radii along x,y,z axes to size the bounding box.

Here is the caller graph for this function:

◆ FillCapsule()

void JGL::J3D::FillCapsule	(	const Color3 &	color,
		const Capsule &	capsule
	)

◆ FillCone()

void JGL::J3D::FillCone ( )

◆ FillCubesphere() [1/2]

void JGL::J3D::FillCubesphere	(	const Color4 &	color,
		const Sphere &	sphere,
		unsigned int	subdivisions = `10`
	)

Draws a solid Cubesphere in 3D space.

Note: A Cubesphere is an approximation of a sphere that is generated by recursively subdividing a Cube.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

sphere	The mathematically-defined sphere object to be rendered.
subdivisions	The accuracy of the approximation of the Cubesphere, measured in iteration steps taken.

◆ FillCubesphere() [2/2]

void JGL::J3D::FillCubesphere	(	const Color4 &	color,
		const Vector3 &	position,
		float	radius,
		unsigned int	subdivisions = `10`
	)

Draws a solid Cubesphere in 3D space.

Note: A Cubesphere is an approximation of a sphere that is generated by recursively subdividing a Cube.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

position	The point in 3D space at which to draw the Sphere.
radius	The size to draw the Sphere at.
subdivisions	The accuracy of the approximation of the Cubesphere, measured in iteration steps taken.

◆ FillCylinder()

void JGL::J3D::FillCylinder ( )

◆ FillIcosahedron()

void JGL::J3D::FillIcosahedron	(	const Color4 &	color,
		const Vector3 &	position,
		float	radius
	)

Draws a solid Icosahedron in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

position	The point in 3D space at which to draw the Icosahedron.
radius	The size to draw the Icosahedron at.

◆ FillIcosphere() [1/2]

void JGL::J3D::FillIcosphere	(	const Color4 &	color,
		const Sphere &	sphere,
		unsigned int	subdivisions = `10`
	)

Draws a solid Icosphere in 3D space.

Note: An Icosphere is an approximation of a sphere that is generated by recursively subdividing an Icosahedron.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

sphere	The mathematically-defined sphere object to be rendered.
subdivisions	The accuracy of the approximation of the Cubesphere, measured in iteration steps taken.

◆ FillIcosphere() [2/2]

void JGL::J3D::FillIcosphere	(	const Color4 &	color,
		const Vector3 &	position,
		float	radius,
		unsigned int	subdivisions = `10`
	)

Draws a solid Icosphere in 3D space.

Note: An Icosphere is an approximation of a sphere that is generated by recursively subdividing an Icosahedron.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

position	The point in 3D space at which to draw the Sphere.
radius	The size to draw the Sphere at.
subdivisions	The accuracy of the approximation of the Cubesphere, measured in iteration steps taken.

◆ FillOBB() [1/2]

void JGL::J3D::FillOBB	(	const Color4 &	color,
		const OBB &	obb
	)

Draws an outline of an oriented bounding box in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

obb	The oriented-bounding-box object to visualize.

◆ FillOBB() [2/2]

void JGL::J3D::FillOBB	(	const Color4 &	color,
		const Vector3 &	position,
		const Vector3 &	radii,
		const EulerAngle &	orientation
	)

Draws an outline of an oriented bounding box in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

position	The center-position of the oriented bounding box.
radii	The radii along x,y,z axes to size the bounding box.
orientation	The rotation in 3D space of the OBB.

◆ FillPipe()

void JGL::J3D::FillPipe ( )

◆ FillPrism()

void JGL::J3D::FillPrism ( )

◆ FillSphere() [1/2]

void JGL::J3D::FillSphere	(	const Color4 &	color,
		const Sphere &	sphere,
		uint	sectors = `10`,
		uint	stacks = `10`
	)

Draws a solid Sphere in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

sphere	The mathematically-defined sphere object to be rendered.
sectors	The amount of latitudinal subdivisions to perform when computing the sphere.
stacks	The amount of longitudinal subdivisions to perform when computing the sphere.

◆ FillSphere() [2/2]

void JGL::J3D::FillSphere	(	const Color4 &	color,
		const Vector3 &	position,
		float	radius,
		uint	sectors = `10`,
		uint	stacks = `10`
	)

Draws a solid Sphere in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

position	The point in 3D space at which to draw the Sphere.
radius	The size to draw the Sphere at.
sectors	The amount of latitudinal subdivisions to perform when computing the sphere.
stacks	The amount of longitudinal subdivisions to perform when computing the sphere.

◆ FillTorus()

void JGL::J3D::FillTorus ( )

◆ FillTriangleMesh()

void JGL::J3D::FillTriangleMesh	(	const Color3 &	color,
		const TriangleMesh &	mesh
	)

◆ Init()

void JGL::J3D::Init	(	const Vector2 &	window_size,
		float	fov,
		float	far_plane
	)

Initializes internals for 3D rendering. Probably will be rethought later.

◆ SetMatrix()

void JGL::J3D::SetMatrix	(	const std::vector< GLfloat > &	matrix,
		const Vector2 &	window_size
	)

◆ WireframeAABB() [1/2]

void JGL::J3D::WireframeAABB	(	const Color4 &	color,
		const AABB &	aabb,
		float	thickness = `1.f`
	)

Draws an outline of an axis-aligned bounding box in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

aabb	The AABB object to render.

Here is the call graph for this function:

◆ WireframeAABB() [2/2]

void JGL::J3D::WireframeAABB	(	const Color4 &	color,
		const Vector3 &	pos,
		const Vector3 &	radii,
		float	thickness = `1.f`
	)

Draws an outline of an axis-aligned bounding box in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

pos	The point in 3D space that is the center of the AABB.
radii	The radii along x,y,z axes to size the bounding box.
thickness	The line-width to draw the Icosphere outline with.

Here is the caller graph for this function:

◆ WireframeCapsule()

void JGL::J3D::WireframeCapsule	(	const Color3 &	color,
		const Capsule &	cap,
		float	thickness = `1.f`
	)

◆ WireframeCone()

void JGL::J3D::WireframeCone ( )

◆ WireframeCubesphere() [1/2]

void JGL::J3D::WireframeCubesphere	(	const Color4 &	color,
		const Sphere &	sphere,
		float	thickness = `1.f`,
		unsigned int	subdivisions = `10`
	)

Draws the outline of a Cubesphere in 3D space.

Note: A Cubesphere is an approximation of a sphere that is generated by recursively subdividing a Cube.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

sphere	The mathematically-defined sphere object to be rendered.
thickness	The line-width to draw the Cubesphere outline with.
subdivisions	The accuracy of the approximation of the Cubesphere, measured in iteration steps taken.

◆ WireframeCubesphere() [2/2]

void JGL::J3D::WireframeCubesphere	(	const Color4 &	color,
		const Vector3 &	position,
		float	radius,
		float	thickness = `1.f`,
		unsigned int	subdivisions = `10`
	)

Draws the outline of a Cubesphere in 3D space.

Note: A Cubesphere is an approximation of a sphere that is generated by recursively subdividing a Cube.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

position	The point in 3D space at which to draw the Sphere.
radius	The size to draw the Sphere at.
thickness	The line-width to draw the Cubesphere outline with.
subdivisions	The accuracy of the approximation of the Cubesphere, measured in iteration steps taken.

◆ WireframeCylinder()

void JGL::J3D::WireframeCylinder ( )

◆ WireframeIcosahedron()

void JGL::J3D::WireframeIcosahedron	(	const Color4 &	color,
		const Vector3 &	position,
		float	radius,
		float	thickness = `1.f`
	)

Draws the outline of an Icosahedron in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

position	The point in 3D space at which to draw the Icosahedron.
radius	The size to draw the Icosahedron at.
thickness	The line-width to draw the Icosahedron outline with.

◆ WireframeIcosphere() [1/2]

void JGL::J3D::WireframeIcosphere	(	const Color4 &	color,
		const Sphere &	sphere,
		float	thickness = `1.f`,
		unsigned int	subdivisions = `10`
	)

Draws the outline of an Icosphere in 3D space.

Note: An Icosphere is an approximation of a sphere that is generated by recursively subdividing an Icosahedron.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

sphere	The mathematically-defined sphere object to be rendered.
thickness	The line-width to draw the Icosphere outline with.
subdivisions	The accuracy of the approximation of the Icosphere, measured in iteration steps taken.

◆ WireframeIcosphere() [2/2]

void JGL::J3D::WireframeIcosphere	(	const Color4 &	color,
		const Vector3 &	position,
		float	radius,
		float	thickness = `1.f`,
		unsigned int	subdivisions = `10`
	)

Draws the outline of an Icosphere in 3D space.

Note: An Icosphere is an approximation of a sphere that is generated by recursively subdividing an Icosahedron.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

position	The point in 3D space at which to draw the Sphere.
radius	The size to draw the Sphere at.
thickness	The line-width to draw the Icosahedron outline with.
subdivisions	The accuracy of the approximation of the Icosphere, measured in iteration steps taken.

◆ WireframeOBB() [1/2]

void JGL::J3D::WireframeOBB	(	const Color4 &	color,
		const OBB &	obb,
		float	thickness = `1.f`
	)

Draws an outline of an oriented bounding box in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

obb	The OBB object to visualize.
thickness	The line-width to draw the OBB outline with.

◆ WireframeOBB() [2/2]

void JGL::J3D::WireframeOBB	(	const Color4 &	color,
		const Vector3 &	position,
		const Vector3 &	radii,
		const EulerAngle &	orientation,
		float	thickness = `1.f`
	)

Draws an outline of an oriented bounding box in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

position	The point in 3D space that is the center of the AABB.
radii	The radii along x,y,z axes to size the bounding box.
orientation	The rotation in 3D space of the OBB.
thickness	The line-width to draw the OBB outline with.

◆ WireframePipe()

void JGL::J3D::WireframePipe ( )

◆ WireframePrism()

void JGL::J3D::WireframePrism ( )

◆ WireframeSphere() [1/2]

void JGL::J3D::WireframeSphere	(	const Color4 &	color,
		const Sphere &	sphere,
		float	thickness = `1.f`,
		uint	sectors = `10`,
		uint	stacks = `10`
	)

Draws the outline of a Sphere in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

sphere	The mathematically-defined sphere object to be rendered.
thickness	The line-width to draw the Icosahedron outline with.
sectors	The amount of latitudinal subdivisions to perform when computing the sphere.
stacks	The amount of longitudinal subdivisions to perform when computing the sphere.

Here is the call graph for this function:

◆ WireframeSphere() [2/2]

void JGL::J3D::WireframeSphere	(	const Color4 &	color,
		const Vector3 &	position,
		float	radius,
		float	thickness = `1.f`,
		uint	sectors = `10`,
		uint	stacks = `10`
	)

Draws the outline of a Sphere in 3D space.

Parameters

color A 3-or-4 channel color value.

See also: class Color3, class Color4

Parameters

position	The point in 3D space at which to draw the Sphere.
radius	The size to draw the Sphere at.
thickness	The line-width to draw the Icosahedron outline with.
sectors	The amount of latitudinal subdivisions to perform when computing the sphere.
stacks	The amount of longitudinal subdivisions to perform when computing the sphere.

Here is the caller graph for this function:

◆ WireframeTorus()

void JGL::J3D::WireframeTorus ( )

◆ WireframeTriangleMesh()

void JGL::J3D::WireframeTriangleMesh	(	const Color3 &	color,
		const TriangleMesh &	mesh,
		float	thickness = `1.f`
	)

Functions

Detailed Description

Function Documentation

◆ Begin()

◆ ChangeFarPlane()

◆ ChangeFOV()

◆ DrawAxisAngleGizmo()

◆ DrawBillboardSprite()

◆ DrawBillboardString()

◆ DrawCubicBezierCurve()

◆ DrawLine()

◆ DrawMatrixGizmo() [1/2]

◆ DrawMatrixGizmo() [2/2]

◆ DrawQuaternionGizmo()

◆ DrawSprite()

◆ DrawString()

◆ End()

◆ FillAABB() [1/2]

◆ FillAABB() [2/2]

◆ FillCapsule()

◆ FillCone()

◆ FillCubesphere() [1/2]

◆ FillCubesphere() [2/2]

◆ FillCylinder()

◆ FillIcosahedron()

◆ FillIcosphere() [1/2]

◆ FillIcosphere() [2/2]

◆ FillOBB() [1/2]

◆ FillOBB() [2/2]

◆ FillPipe()

◆ FillPrism()

◆ FillSphere() [1/2]

◆ FillSphere() [2/2]

◆ FillTorus()

◆ FillTriangleMesh()

◆ Init()

◆ SetMatrix()

◆ WireframeAABB() [1/2]

◆ WireframeAABB() [2/2]

◆ WireframeCapsule()

◆ WireframeCone()

◆ WireframeCubesphere() [1/2]

◆ WireframeCubesphere() [2/2]

◆ WireframeCylinder()

◆ WireframeIcosahedron()

◆ WireframeIcosphere() [1/2]

◆ WireframeIcosphere() [2/2]

◆ WireframeOBB() [1/2]

◆ WireframeOBB() [2/2]

◆ WireframePipe()

◆ WireframePrism()

◆ WireframeSphere() [1/2]

◆ WireframeSphere() [2/2]

◆ WireframeTorus()

◆ WireframeTriangleMesh()
