JGL::RenderTarget Class Reference

#include <RenderTarget.h>

Public Member Functions
void	Resize (const Vector2 &new_size)
	Change the size of the renderable area of the Render Target. More...
void	SetMSAAEnabled (MSAA_SAMPLE_RATE sample_rate)
void	Blit () const
	If you're using raw OpenGL commands to draw to this outside of J2D or J3D don't forget to do this. More...
bool	TextureCreatedByRenderTarget () const
Vector2	GetDimensions () const
MSAA_SAMPLE_RATE	GetMSAASampleRate () const
bool	MSAAEnabled () const
	Returns whether or not MSAA is enabled, If it is and you're not using J2D || J3D Begin / End, You need to run "Blit()" after rendering to your FBO before you show it. More...
const Texture *	GetJGLTexture () const
GLuint	GetGLTextureHandle () const
GLuint	GetGLFramebufferObjectHandle () const
GLuint	GetGLDepthBufferHandle () const
Color4	GetClearColor () const
std::vector< GLfloat >	GetData () const
	Get the data back from the FBO. This is not async friendly. More...
	RenderTarget (const RenderTarget &rhs)
	Copy constructor. Will always set "texture_created_by_us" to true and use our own texture to avoid memleaks. More...
	RenderTarget (const Texture *texture, const Color4 &clear_color=Colors::Black)
	Create a render target for a texture that already exists. For adding to an existing texture. More...
	RenderTarget (const Vector2 &size, const Color4 &clear_color=Colors::Black, bool use_depth=false, MSAA_SAMPLE_RATE sample_rate=MSAA_SAMPLE_RATE::MSAA_NONE)
	Create a Render Target with a brand new texture. Want to render JGL elements onto a texture and display it as a sprite? More...
	~RenderTarget ()

Static Public Member Functions
static GLuint	GetActiveGLFramebufferHandle ()
static void	SetActiveGLRenderTarget (const RenderTarget &render_target)
static void	Blit (const RenderTarget &source, RenderTarget *destination)
	Blit a render target onto another. Will break if they're not the same size. More...

Constructor & Destructor Documentation

RenderTarget() [1/3]

JGL::RenderTarget::RenderTarget

(

const RenderTarget &

rhs

)

Copy constructor. Will always set "texture_created_by_us" to true and use our own texture to avoid memleaks.

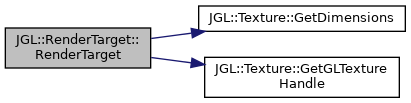

Here is the call graph for this function:

RenderTarget() [2/3]

JGL::RenderTarget::RenderTarget ( const Texture *  texture, const Color4 &  clear_color = Colors::Black  )

explicit

Create a render target for a texture that already exists. For adding to an existing texture.

Idk why you'd ever want to clear it out if you're rendering onto a texture you passed in :shrug:.

Here is the call graph for this function:

RenderTarget() [3/3]

JGL::RenderTarget::RenderTarget ( const Vector2 &  size, const Color4 &  clear_color = Colors::Black, bool  use_depth = false, MSAA_SAMPLE_RATE  sample_rate = MSAA_SAMPLE_RATE::MSAA_NONE  )

explicit

Create a Render Target with a brand new texture. Want to render JGL elements onto a texture and display it as a sprite?

~RenderTarget()

JGL::RenderTarget::~RenderTarget

(

)

Member Function Documentation

Blit() [1/2]

void JGL::RenderTarget::Blit

(

)

const

If you're using raw OpenGL commands to draw to this outside of J2D or J3D don't forget to do this.

Blits the MSAA FBO onto the regular FBO if MSAA is enabled and or If you're rendering to a texture which uses mipmaps, It regenerates them so what you drew doesn't disappear at a distance. Otherwise it does nothing.

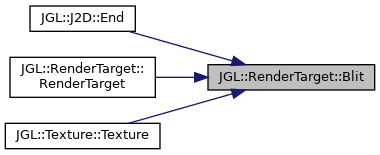

Here is the caller graph for this function:

Blit() [2/2]

void JGL::RenderTarget::Blit ( const RenderTarget &  source, JGL::RenderTarget *  destination  )

static

Blit a render target onto another. Will break if they're not the same size.

GetActiveGLFramebufferHandle()

GLuint JGL::RenderTarget::GetActiveGLFramebufferHandle ( )

static

Here is the caller graph for this function:

GetClearColor()

Color4 JGL::RenderTarget::GetClearColor

(

)

const

Here is the caller graph for this function:

GetData()

std::vector< GLfloat > JGL::RenderTarget::GetData

(

)

const

Get the data back from the FBO. This is not async friendly.

GetDimensions()

Vector2 JGL::RenderTarget::GetDimensions

(

)

const

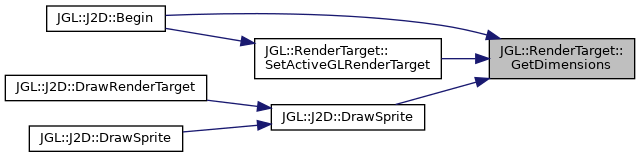

Here is the caller graph for this function:

GetGLDepthBufferHandle()

GLuint JGL::RenderTarget::GetGLDepthBufferHandle

(

)

const

GetGLFramebufferObjectHandle()

GLuint JGL::RenderTarget::GetGLFramebufferObjectHandle

(

)

const

Here is the caller graph for this function:

GetGLTextureHandle()

GLuint JGL::RenderTarget::GetGLTextureHandle

(

)

const

GetJGLTexture()

const JGL::Texture * JGL::RenderTarget::GetJGLTexture

(

)

const

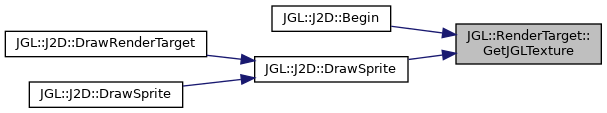

Here is the caller graph for this function:

GetMSAASampleRate()

JGL::MSAA_SAMPLE_RATE JGL::RenderTarget::GetMSAASampleRate

(

)

const

MSAAEnabled()

bool JGL::RenderTarget::MSAAEnabled

(

)

const

Returns whether or not MSAA is enabled, If it is and you're not using J2D || J3D Begin / End, You need to run "Blit()" after rendering to your FBO before you show it.

Note

Also, If the texture wasn't made by the RenderTarget you don't want this. It would destroy the texture.

Here is the caller graph for this function:

Resize()

void JGL::RenderTarget::Resize

(

const Vector2 &

new_size

)

Change the size of the renderable area of the Render Target.

Parameters

new_size

new size in px.

SetActiveGLRenderTarget()

void JGL::RenderTarget::SetActiveGLRenderTarget ( const RenderTarget &  render_target )

static

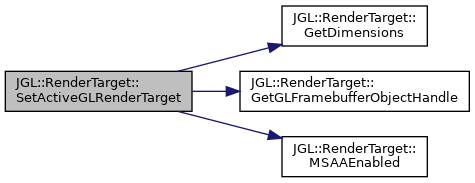

Here is the call graph for this function:

Here is the caller graph for this function:

SetMSAAEnabled()

void JGL::RenderTarget::SetMSAAEnabled

(

JGL::MSAA_SAMPLE_RATE

sample_rate

)

TextureCreatedByRenderTarget()

bool JGL::RenderTarget::TextureCreatedByRenderTarget

(

)

const

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• include/JGL/types/RenderTarget.h
• src/types/RenderTarget.cpp
